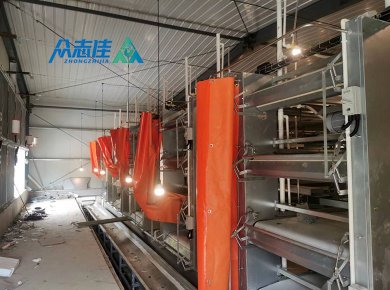

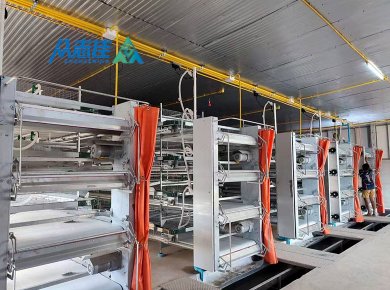

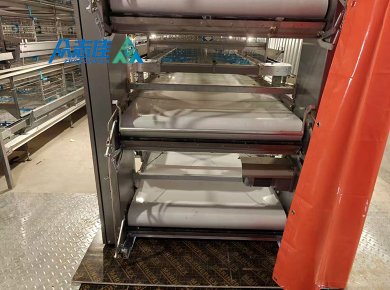

Manure Removal System

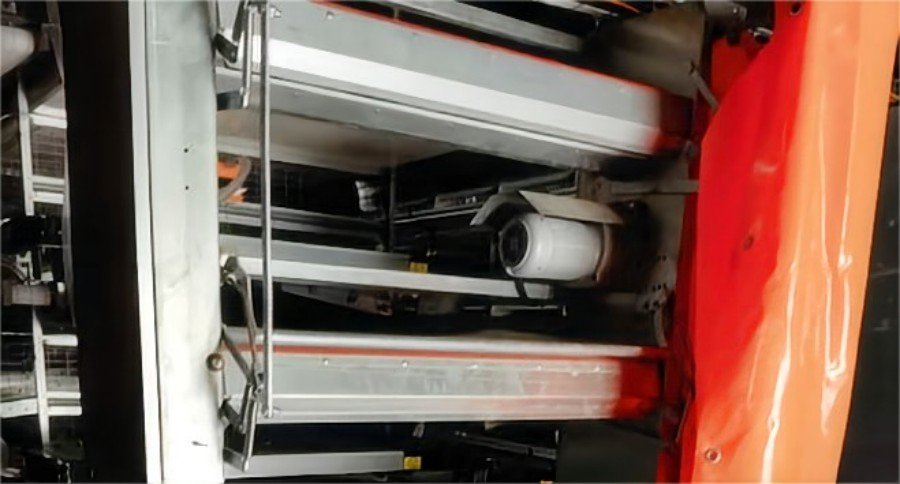

Double scrapers with silicone rubber at the end set ensures better scraping of manure

High quality manure belt in 1.0mm thickness

• 3/4” inch chain joint.

• Speed of manure removing belt: 3.4m/min.

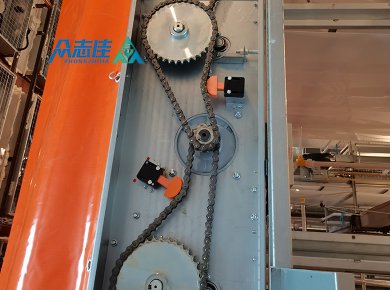

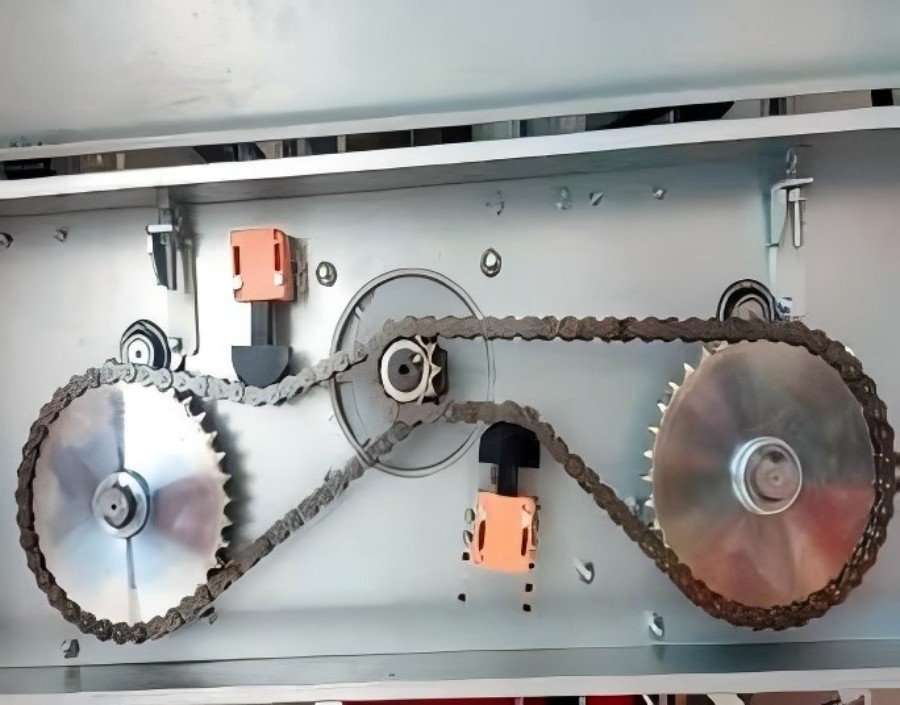

• 1 Drive unit per 2 tiers, sprockets (Hardened steel) and chains hold high loads.

• Manure removal of five drive unit can work simultaneously.

• All manure in a single house can be removed in 25 minutes for starter house or 50 minutes for layer house.

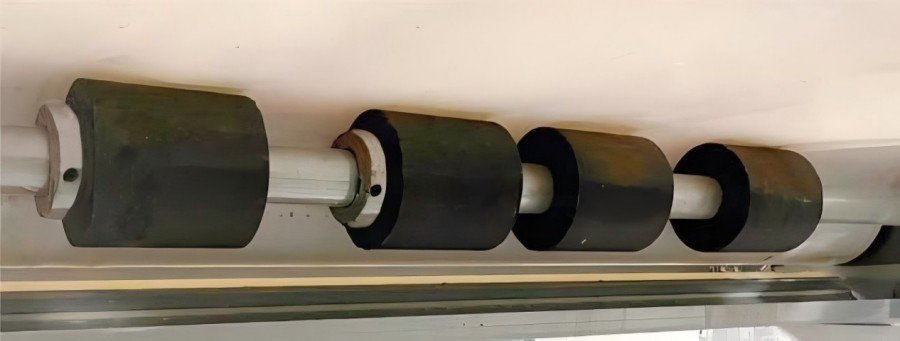

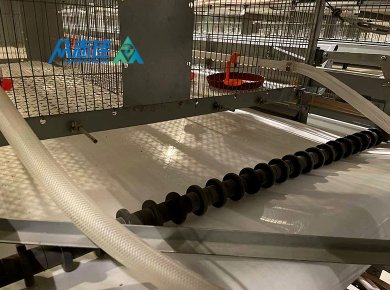

Rubberized press wheels optimization

• Bigger outside diameter of rubber press wheel is to increase the strength of the pressure on the manure belt

• Electroplating is used is used in this area to achieve a better resistance to corrosion to prevent rust and loose, so as to reduce the risk of stray manure belt

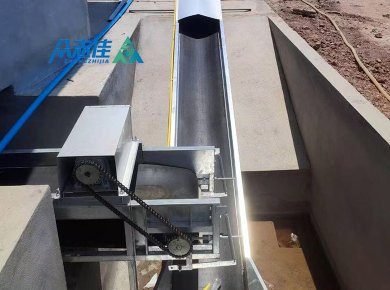

Outside horizontal and vertical manure belts

Conveying speed: 35m/min

Manure conveying capacity: 25ton/h

High quality rubber material manure belt: 6.5mm thickness

Hot-dip galvanized square tubing welded support

Stainless steel unpowered roller / drum with nylon plug inner bearing to support manure belt.
