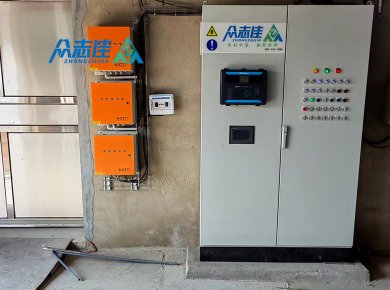

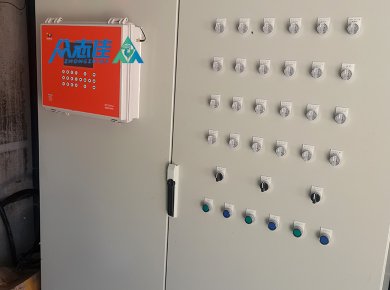

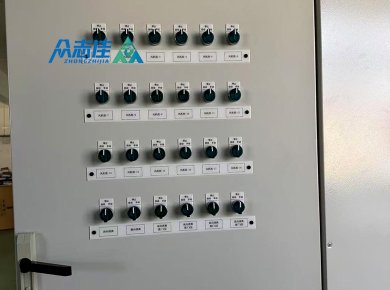

Control Panels

Control Panels

(Won praise from many customers)

Inquire now

Product Details

Total fans	50
Relay fans	20 sets of transverse exhaust and 30 sets of tunnel
Variable speed fans	Any group of 50 fans can change speed
Inlets	4
Tunnel doors	6
Natural ventilation curtains	4
Heaters	16
Variable heat	8
Cooling	4
Foggers	4
Feeders	4
Auger	4
Water line	20
Light	10
And more … .	Additional systems, feeding line and nipple line lifting, waterline ﬂushing, etc

For minimum ventilation, the fan can be turned on alternately. Customers can use this function according to their own needs.
The minimum ventilation level can be set for the minimum ventilation of chickens to effectively cope with sudden extreme weather.
CONTROL SYSTEM 3.0wning precision ventilation mode, the controller automatically finds the appropriate level without manual intervention and labor to maintain the suitable temperature accurately.
The target temperature changes according to the day age and time automatically.

Screen	Big LCD or big touch screen
Relays	small(30)or large(50),10/group
Static pressure	optional
Temperature sensors	With the addition of cards, it can be up to 36 groups
CO2 Sensor	no more than 1 group
Humidity sensors	no more than 3 groups
Water counters	The standard is 12 groups,adding cards can be up to 20 groups
Feed Counters	no more than 4 groups
Silo Scales	no more than 6 groups
Bird scales	no more than 4 groups
Breeder Feed Scale	no more than 1 group
Light Dimmer Control	No more than 10 groups need extra cards
Egg Counter	no more than 4 groups for laying hens pattern
Wind speed Direction/Rain Detector
Monitoring / Detecting	Optional for open House(natural ventilation)
Alarms	support
Remote access through App	support

LCD large screen, optimize human-computer interaction experience
Standard models are divided into 30, 40 and 50 relays, which can be connected to up to 12 temperature probes (with 4 common channels, up to 4 temperature or 2 humidity, 1 CO2, 1 ammonia), 1 pressure sensor, and 12 pulse water meters.
Historical Data: You can query back for 999 days, you can view the temperature, humidity and other changes at any time, set the minimum value as 1 minute.
